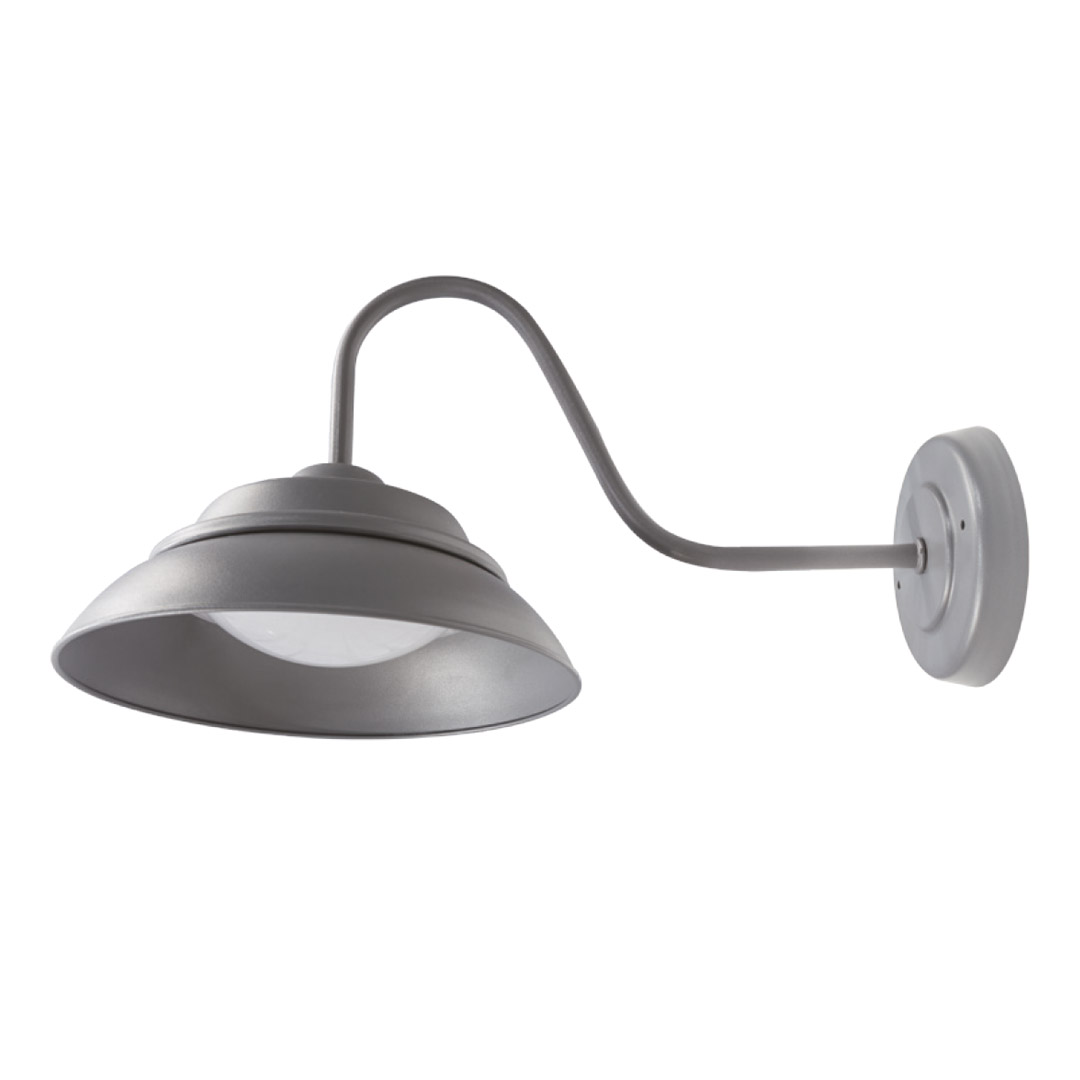

WSL-BL30W-XXXXK-PC

P/N: WSL-BL30W-XXXXK-PC

● Heavy-duty cast aluminum housing; rust and corrosion proof;polyester powder coating
● Diffusor: High light transmittance & Polycarbonate with UV
● Photo control: Electrical type with 120V
● LEDs: Top grade LED, high-output,long-life;
● Heat Sink:Aluminium sink attached to the housing directly to reduce LED heats and add to life
● LED Driver: Constant current
● Finish: Bronze finish. Environmentally friendly polyester powder coatings.
● Mounting: Standard hole for the 1-1/2″(40mm) pole mount

General Performance

Input Wattage: 30W, Lumens: 2000, Efficacy: 70LPW, Input Voltage: 120V/50-60HZ, CRI: >80, CCT: 5000K, Power Factor: ≥0.9, THD: ≤20%, Driver Type:
Constant Current / Class 1, Surge Protector: 4KV inside of Driver, Luminaire Life: 50000hrs;
Physical
Dimension: 16.8”x9.3”x8.6”(427x237x220mm), Weight: 2.06lbs(0.934Kg);
Operation Condition
Operating Temperature: -40℉～+104℉(-40℃-40℃), Humidity: ≤95%;
Certificate
Certification: ES2.0/4.1/4.2, Enviroment: Suitable for Wet Location, Material: Rohs compliant.

Download Specification file DOWNLOAD
